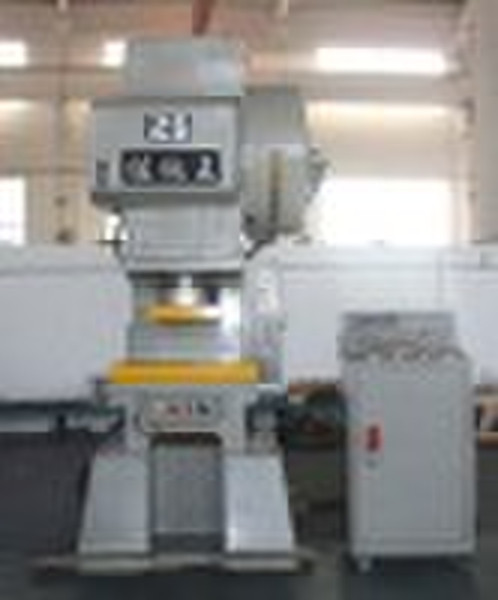

CH25 punching machine

punching machine Description punching machine 1.Strong ,steady, solid structure 3circle guides design (2 guide column,1 plunger structure)and the guides use the zero error spot contact bearing, instead of traditional and high frication coefficient sliding plate ,which can reduce the heat dislocation to the minimum value and prolong their useful life 2.Hydraulic lock system C Series equip hydraulic lock function, which can quickly adjust the mold .The Operator can also greatly improve work efficiency. 3.Excellent dynamic balancing system CD Series equip dynamic balancing system , which not only can minimize the noise and vibration but also make the punch be more precise and stable. 4.counterforce coil spring balancing device When the station runs very fast , the balancing system can minimize the counterforce and make the punch get the best accuracy and stability. 5.Independent control box Simple in operation and complete function. Another control panel is available in the station. Technical data: ModelCH25Capacity25 Tonsstroke of Slide202530SPM200-1000200-900200-800Die-Height180-210 mmBolster600×300×75 mmArea of Slide300×210 mmSlide Adjustment30mmBed Opening400×100 mmMotor5 HpGross Weight2800 kgsLubricationForceful AutomationSpeed ControlInverterClutch & BrakeAir & FrictionDynamic Balancing√Hydraulic lock√Vibration SystemOption
