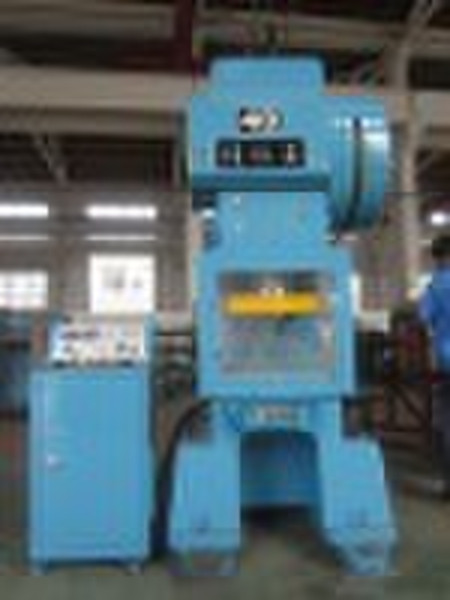

CH40 press machine

press machine 1.Strong,steady,solid structure 3circle guides design (2 guide column,1 plunger structure)and the guides use the zero error spot contact bearing,instead of traditional and high frication coefficient sliding plate ,which can reduce the heat dislocation to the minimum value and prolong their useful life. 2.Hydraulic lock system C Series equip hydraulic lock function,which can quickly adjust the mold .The Operator can also greatly improve work efficiency. 3.Excellent dynamic balancing system CD Series equip dynamic balancing system , which not only can minimize the noise and vibration but also make the punch be more precise and stable. 4.counterforce coil spring balancing device When the station runs very fast , the balancing system can minimize the counterforce and make the punch get the best accuracy and stability. 5.Independent control box Simple in operation and complete function. Another control panel is available in the station. Specifications ModelCH40Capacity40 Tonsstroke of Slide25304050SPM200-800200-700200-600200-500Die-Height200-230 mmBolster700×420×100 mmArea of Slide420×320 mmSlide Adjustment30mmBed Opening400×100 mmMotor7.5 HpGross Weight4200 kgsLubricationForceful AutomationSpeed ControlInverterClutch & BrakeAir & FrictionDynamic Balancing0Hydraulic lock0Vibration SystemOption
