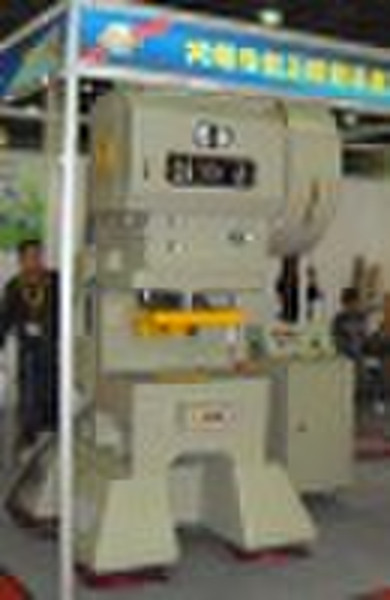

CH50 punching machine

punching machine Describtion ModelCH50Capacity50 Tonsstroke of Slide20253040SPM200-750200-700200-600200-500Die-Height220-250 mmBolster750×450×90 mmArea of Slide480×340 mmSlide Adjustment30mmBed Opening480×100 mmMotor7.5 HpGross Weight6000 kgsLubricationForceful AutomationSpeed ControlInverterClutch & BrakeAir & FrictionDynamic Balancing√Hydraulic lock√Vibration SystemOptional Layout Drawing STANDARD ACCESSORIES 1 Dynamic Balancing System 2 Lubrication System 3 Upper Die Adjust System 4 Hydraulic Lock of Slide Ram System 5 Motor and Inverter( TECO Brand) 6 Air Filtering System 7 Dry Style Clutch Brake System (Dongxiong Taiwan Brand) 8 0.01 Precision Die Height Indicator 9 Independent Electrical Control Box Micro-computer Control System 10 Bearing ( NSK Japanese Brand) 11 Solenoid Valve (MAC U.S.A. Brand) 12 Tool Box (One Set) 13 Sealing (Hangsheng Taiwan) 14 Stock Oil Tank OPTIONAL ACCESSORIES 1 Air Cushion 2 Safety Shield 3 Safety Ray Protection Features of TQN Middle/High Speed Press 1.Strong ,steady, solid structure 3 circle guides design (2 guide column,1 plunger structure)and the guides use the zero error spot contact bearing, instead of traditional and high frication coefficient sliding plate ,which can reduce the heat dislocation to the minimum value and prolong their useful life. 3circle guides design 2.Hydraulic lock system C Series equip hydraulic lock function, which can quickly adjust the mold .The Operator can also greatly improve work efficiency. 3.Excellent dynamic balancing system CD Series equip dynamic balancing system , which not only can minimize the noise and vibration but also make the punch be more precise and stable. Dynamic Balaning system 4.counterforce coil spring balancing device When the station runs very fast , the balancing system can minimize the counterforce and make the punch get the best accuracy and stability.5.Independent control box Simple in operation and complete function. Another control panel is available in the station. Equipment For Press( Opational)RFSeries FeederSML SeriesStraightenerLLTDouble-heads Series Uncoiler
